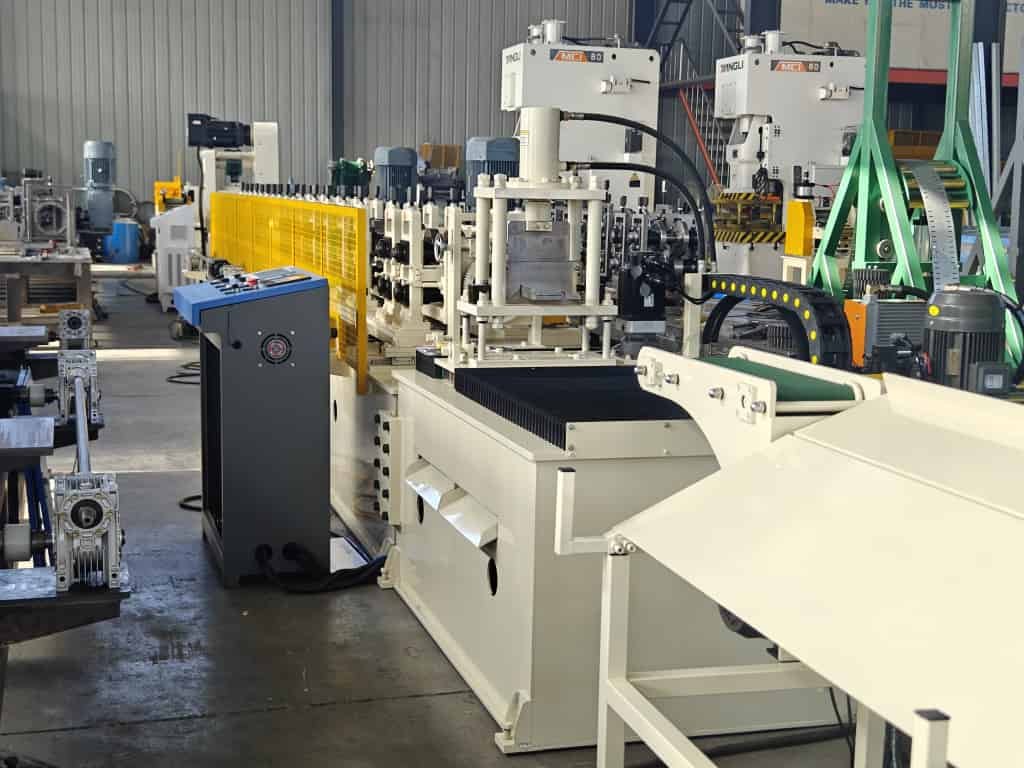

Are you in the business of manufacturing high-performance gutter protection systems designed to keep rainwater flowing while blocking out leaves, branches, and other debris? Zhongtuo’s Gutter Cover Roll Forming Machine offers a smart and efficient solution for producing K-style aluminum gutter covers that are both durable and highly functional.
This specialized forming line is purpose-built for fabricating perforated gutter protection covers that enhance drainage performance while eliminating the risk of clogging. Whether you’re a large-scale manufacturer or a contractor planning to bring production in-house, this machine is engineered to meet the highest standards in speed, accuracy, and versatility.
Efficient Design for K-Style Gutter Protection
This high-performance Gutter Cover Roll Forming Machine is designed to process both 5-inch and 6-inch K-style gutter profiles, which are among the most widely used styles in residential and commercial roofing systems. The machine supports multiple types of material, including:
Aluminum coil
Pre-painted galvanized steel (PPGL)
Galvanized steel (GL)
It efficiently handles coil thicknesses from 0.4 mm to 0.5 mm, offering manufacturers the flexibility to use materials that suit various weather and durability requirements.

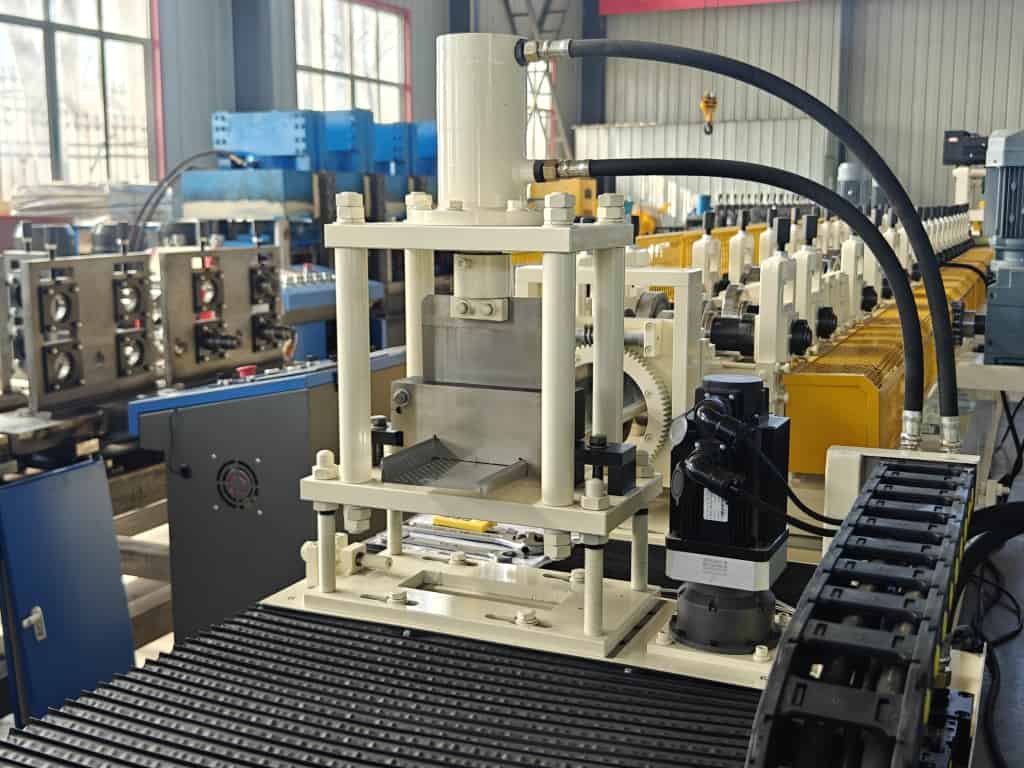

Integrated High-Speed Punching for Precise Perforations

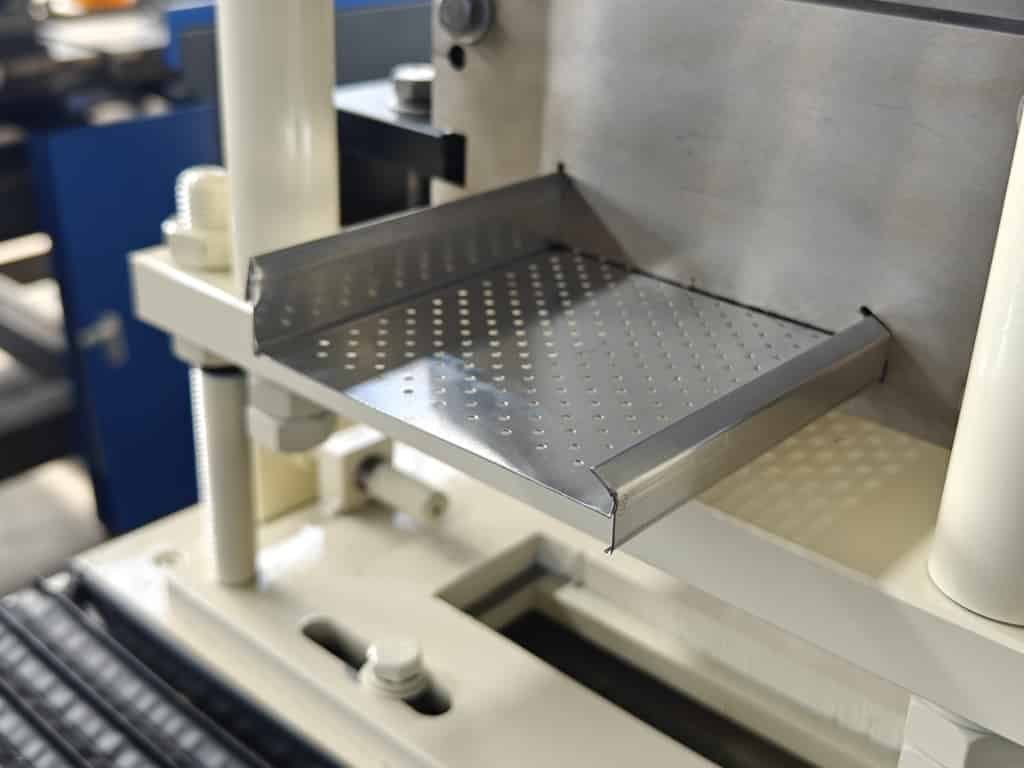

One of the standout features of this machine is its 55-ton high-speed punching unit, which creates uniform water filtration holes across the gutter cover. These perforations are strategically designed to allow rainwater to flow freely into the gutter system while filtering out large debris such as leaves, pine needles, and small twigs.
Operating at speeds of up to 30 meters per minute, the punching system supports high-output production while ensuring that each hole is clean and consistent. This is vital for both aesthetics and function, as irregular punching can compromise the flow and protection efficiency of the finished product.
Precision Roll Forming and Advanced Control System
The forming section of the line consists of 17 precision rollers, crafted from hard-chromed 45# steel, ensuring long-term resistance to wear and maintaining high dimensional accuracy throughout the forming process.
A Delta PLC control system with a responsive touchscreen interface allows operators to easily input and adjust parameters such as cutting length and batch quantity. With a precision tolerance of ±1 mm, this ensures minimal material waste and high output consistency.
Additionally, the servo cutting system enables the line to operate continuously without stopping for each cut. This non-stop operation enhances overall efficiency and eliminates material deformation, a common issue in older cutting mechanisms.
Enhanced Feeding and Structural Strength
The machine features a hydraulic decoiler with leveling function, ensuring smooth and even material feeding from start to finish. This plays a crucial role in maintaining the integrity of both the punching and forming processes, reducing misfeeds and material jams.
The entire system is built on a heavy-duty steel frame, supported by Harbin bearings and driven by a robust chain transmission system. These components are selected for their industrial-grade durability, allowing the machine to operate reliably in demanding manufacturing environments.
Flexible, Cost-Effective Production
Designed with multi-size adjustability, this roll forming line allows manufacturers to switch between gutter cover specifications with minimal tooling changeovers. This flexibility reduces setup time, cuts tooling expenses, and enables the production of multiple product lines on a single machine.
A Reliable Solution for Premium Gutter Cover Manufacturing
Zhongtuo’s Gutter Cover Roll Forming Machine is an ideal investment for businesses looking to improve production speed, reduce waste, and maintain consistently high product quality. Whether you are expanding your current product offerings or launching a new gutter system line, this machine provides the efficiency and performance needed to stay competitive in today’s fast-paced market.
